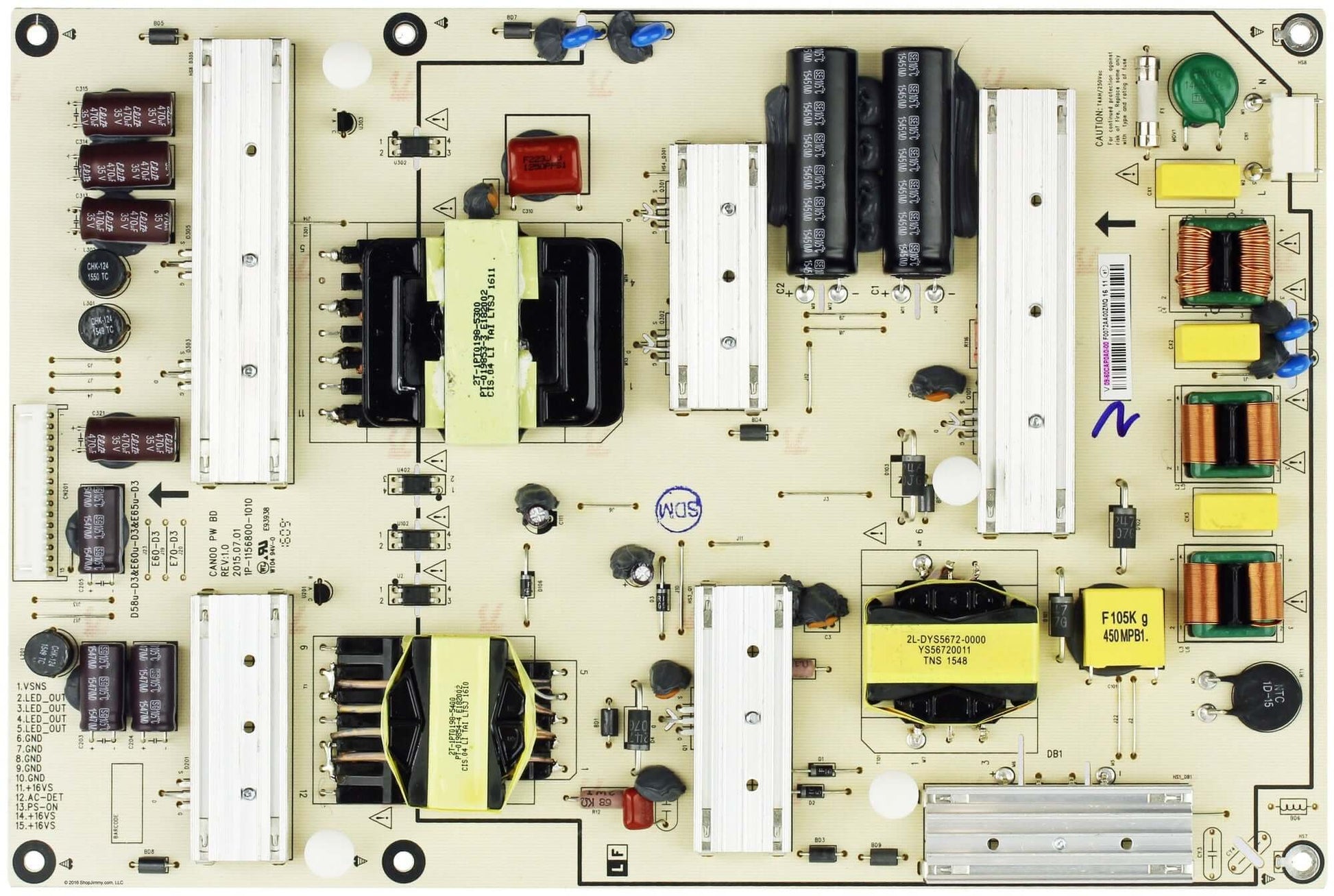

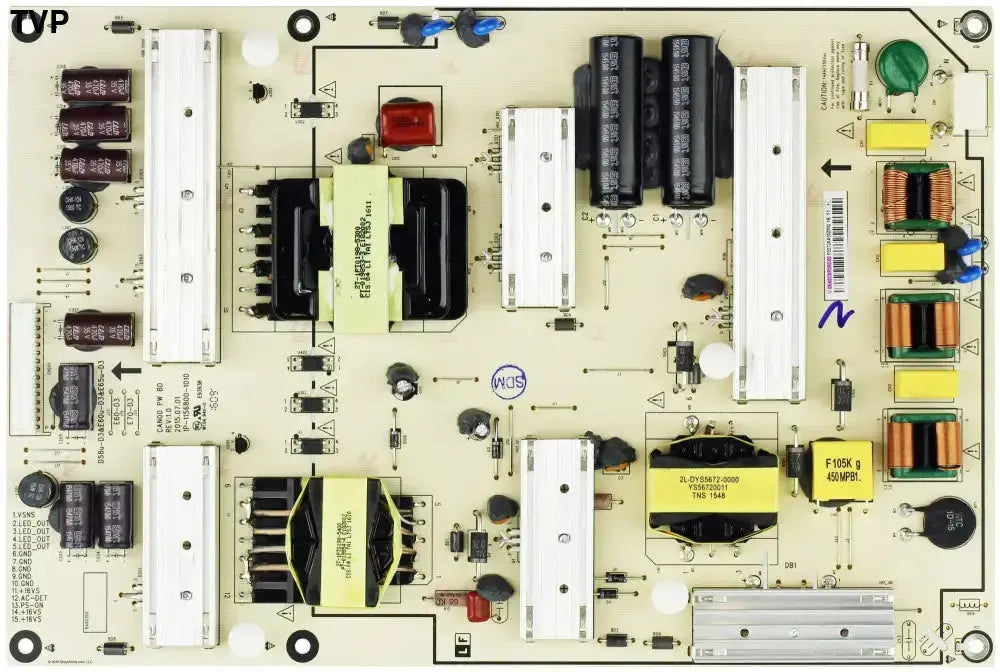

09-60CAP0A0-00 Vizio Power Supply Board for E65U-D3 / E60U-D3
Vizio 09-60CAP0A0-00 (0960CAP0A000) power supply board, board number 1P11568001010, for E65U-D3 and E60U-D3. Intended for diagnosed power-supply faults that may cause no power, unexpected shutdowns, or backlight power problems. Match the exact label part number before ordering.
Specifications & Board Identifiers
- Brand: Vizio
- Part Number: 09-60CAP0A0-00 (0960CAP0A000)
- Board Number: 1P11568001010
- Product Type: Power Supply Board
- Compatible TV Models: E65U-D3 | E60U-D3
Common TV Symptoms Fixed
- No power caused by a diagnosed power-supply fault.
- Unexpected shutdowns caused by unstable power from the supply.
- No LED backlighting when the backlight power supply is faulty.
LED strips, the main board, and other components can cause similar symptoms. Confirm the faulty component before replacement.
Fitment & Ordering Guidelines
Verify the white-sticker part number 09-60CAP0A0-00, PCB/board number 1P11568001010, complete TV model suffix, and any version information on your TV. No specific version code or substitute part is provided in the source listing. Do not order by model number or visual similarity alone.
Disconnect the TV from power before service. Power-supply capacitors can retain hazardous voltage after unplugging; professional installation is recommended. Use ESD precautions and handle the board by its edges.
