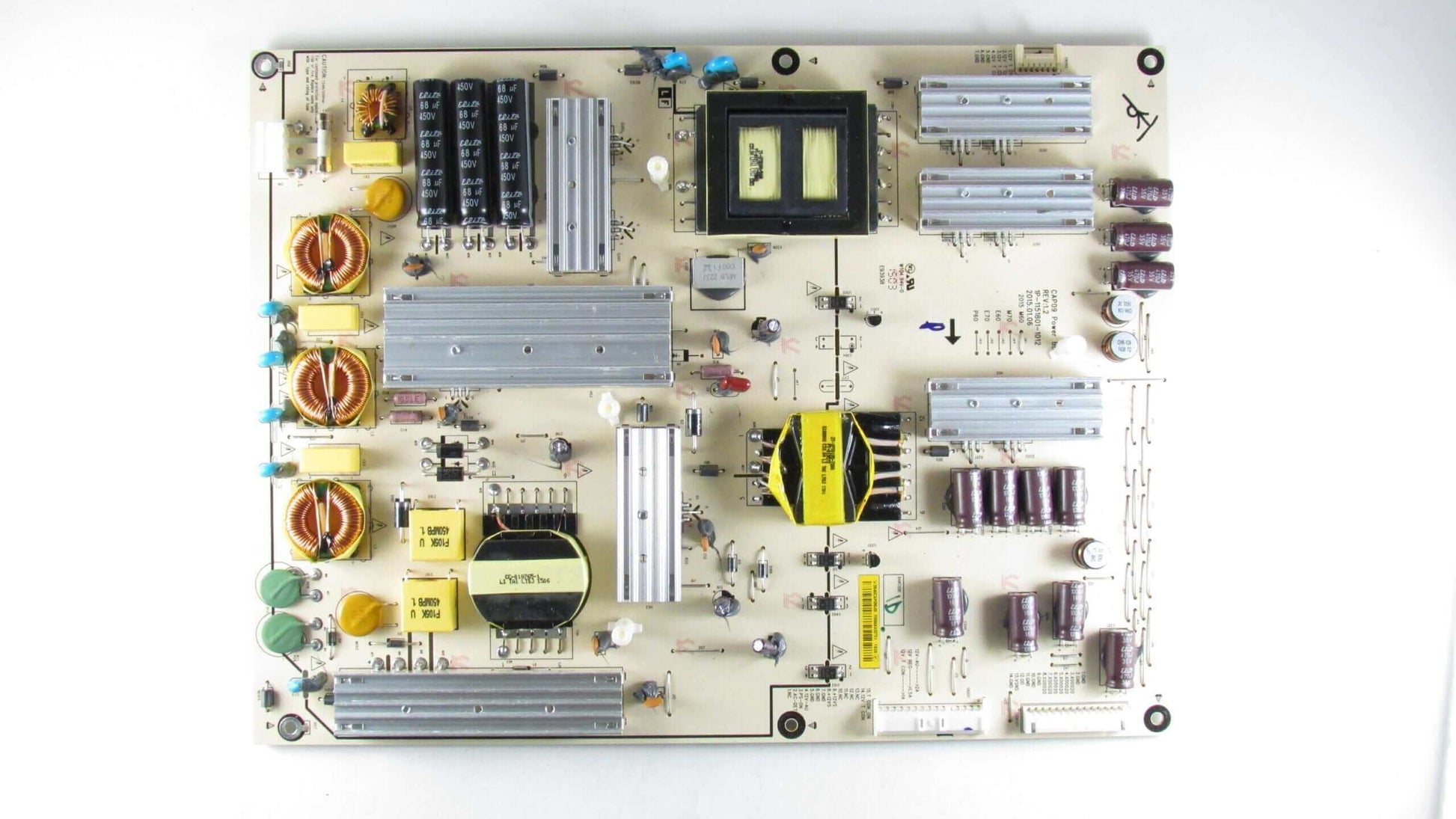

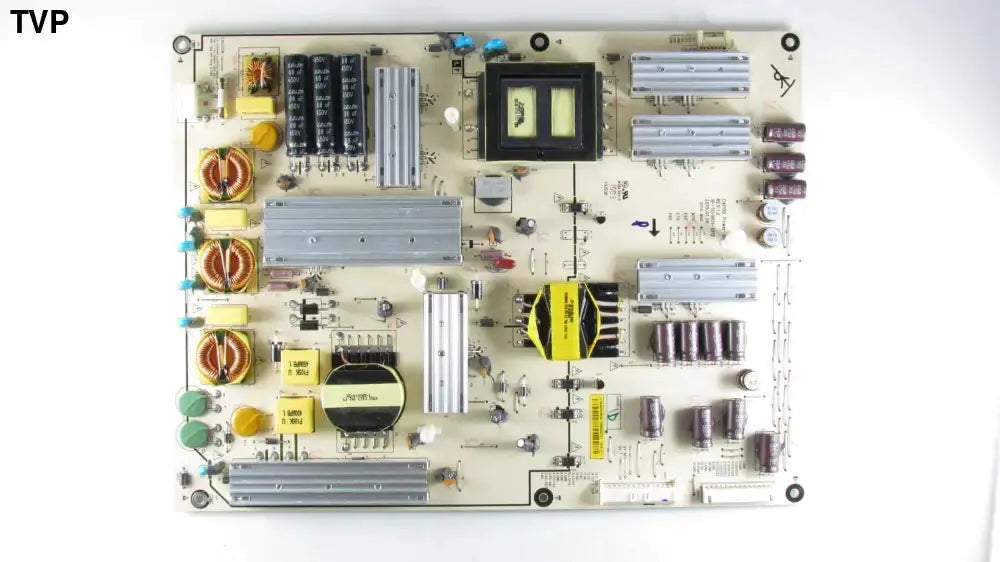

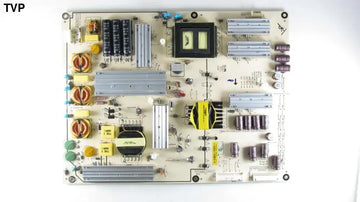

09-60CAP090-00 Vizio Power Supply Board for M60-C3 / P602UI-B3
Vizio 09-60CAP090-00 (0960CAP09000) power supply board for M60-C3 and P602UI-B3, also listed as M60C3 and P602UIB3. Board identifiers: 1P11518011012 | 60cap090. Intended for diagnosed power-supply faults that may cause no power, unexpected shutdowns, or backlight power problems.
Specifications & Board Identifiers
- Brand: Vizio
- Part Number: 09-60CAP090-00 (0960CAP09000)
- Board Number(s): 1P11518011012 | 60cap090
- Product Type: Power Supply Board
- Compatible TV Models: M60-C3 | M60C3 | P602UI-B3 | P602UIB3
Common TV Symptoms Fixed
- No power caused by a diagnosed power-supply fault.
- Unexpected shutdowns caused by unstable power from the supply.
- No LED backlighting when the backlight power supply is faulty.
LED strips, the main board, and other components can cause similar symptoms. Confirm the faulty component before replacement.
Fitment & Ordering Guidelines
Verify the white-sticker/barcode-label part number 09-60CAP090-00, PCB/board identifiers, complete model suffix, and any version information on your TV. No specific version code is provided in the source listing. Do not order by model number or visual similarity alone.
Listed Substitute: 09-60CAP060-00. Confirm the original board label and TV fitment before choosing a substitute.
Disconnect the TV from power before service. Power-supply capacitors can retain hazardous voltage after unplugging; professional installation is recommended. Use ESD precautions and handle the board by its edges.
